tool steel (low alloyed)

Do you need spring steel but the needed dimensions are beyond the manufacturing dimensions?

In this case 75Cr1 might be a possible alternative. Its chemical analysis is comparable to C75S – the most popular spring steel quality.

With 75Cr1 you have got the advantage of expanded widths and thicknesses.

75Cr1 is available in hardening grades: annealed, 42-44 HRC and 48-50 HRC.


Material Code 75Cr1
Material No 1.2003 (AISI: 1075 plus Cr)
Chem. Analysis
Element C Si Mn P S Cr Mo Ni V W
Percentage
(%)
0,74-
0,80
0,25-
0,40
0,65-
0,80
max.
0,025
max.
0,010
0,30-
0,45
- - - -
Product Blanks/Sheets
Heat treatment

Hardening:
830-860 °C, quenching medium: oil

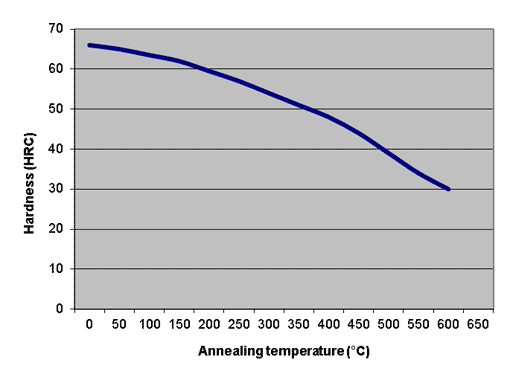

Annealing:

(All values without engagement, please contact your
hardening shop for details)

1. Grade: hot rolled, annealed (75Cr1+AC)
Tolerances according to BS EN 10048/10051 Class D, exept
Thickness:
Width < 600 mm: -0 +0,16 mm
Width >= 600 mm: -0,05 +0,3 mm
Dimensions Thickness: 1,80–8,30 mm
Width: 310–2010 mm
Length: 895–2080 mm

For details and standard dimension please contact our sales department.
2. Grade: cold rolled, bright hardened and tempered (75Cr1+QT)
Tolerances according to BS EN 10140, except
Flatness across: max. 1,0 µm per mm width
Thickness: + 0,02 / + 0,07 mm
Width: - 0 / + 1,0 mm
Length: - 0 / + 10 mm
Hardness (HRC) 42-44 HRC
48-50 HRC
Dimensions 42-44 HRC
Thickness: 1,00-4,00 mm
Width: 210-710 mm
Length: 705-2220 mm

48-50 HRC
Thickness: 1,10-4,20 mm
Width: 355-620 mm
Length: 1775-2500 mm

For details and standard dimension please contact our sales department
